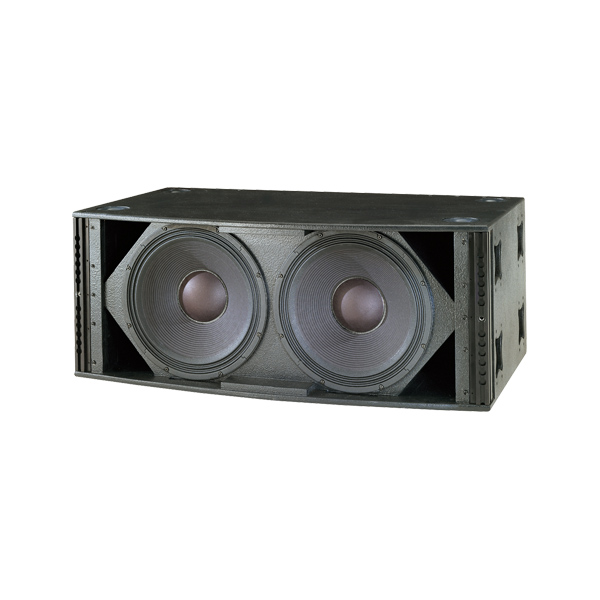

The Electro-Voice® Xsub(F) high-output, dual, 1200-watt, subwoofer system features dual EVX 180B woofers in a rectangular cabinet with a footprint identical to other X-Line systems. As a linear array technology system, the Xsub(F) can be flown or ground-stacked with the Xsub non-flying version. Ring Mode Decoupling (RMD) provides level, independent fidelity, and the Xsub new proprietary rigging allows for rapid venue load-in and load-out, linking hardware included. One of four application-specific X-Line™ models.
Frequency Response (-3dB): 40 - 400 Hz
Frequency Response (-10dB): 35 - 500 Hz
Sensitivity 1W/1m: 103 dB
Max. SPL / 1m (calc): 140 dB
Coverage (nominal -6dB): H° 200 °
Coverage (nominal -6dB): V° 325 °
System Power Handling (continuous/program/peak): 1200/2400/4800 Watts
LF Transducer: EVX180B
LF Nominal Impedance: 4 Ohms
Color: Black
Flying: Yes
Input Connections: 2 Neutrik® NL8
Outdoor: No
Chassis Size: 18 inches
Speaker Type Line Arrays,: Subs
Weight Net: 92 kg ( 202.83 lbs )
Dimensions (HxWxD): 494.3 x 1245 x 740 mm
