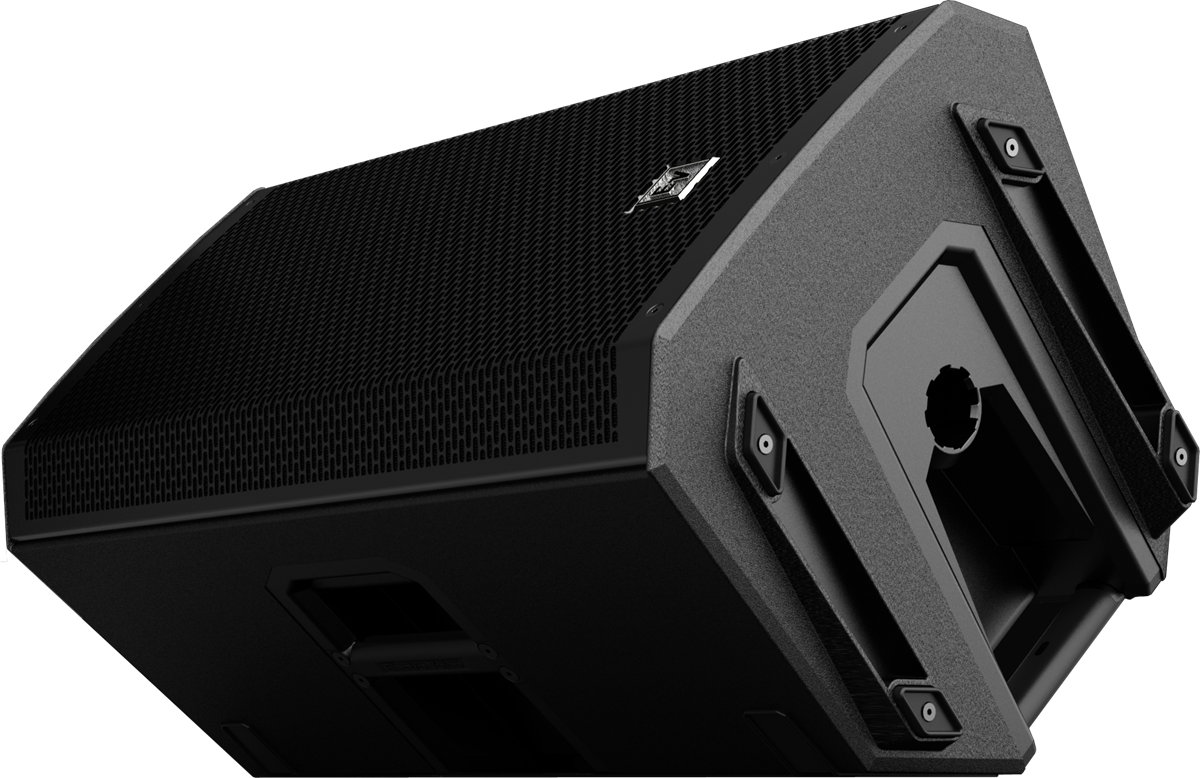

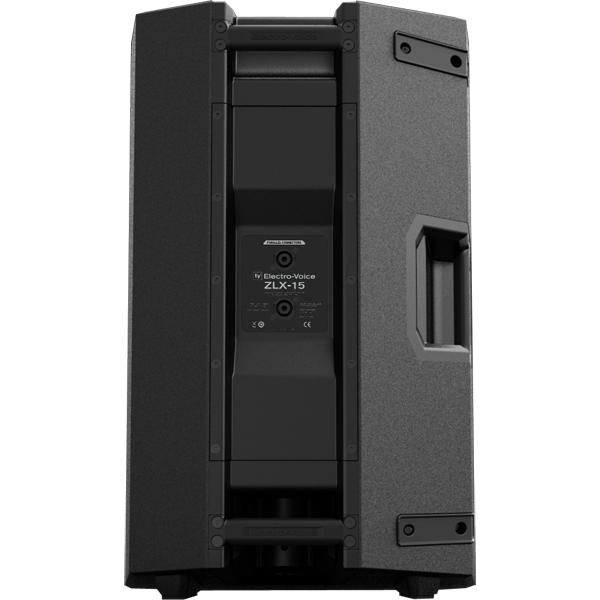

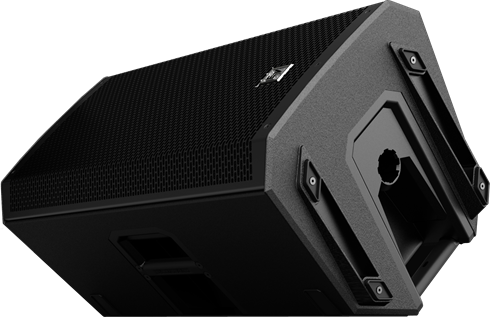

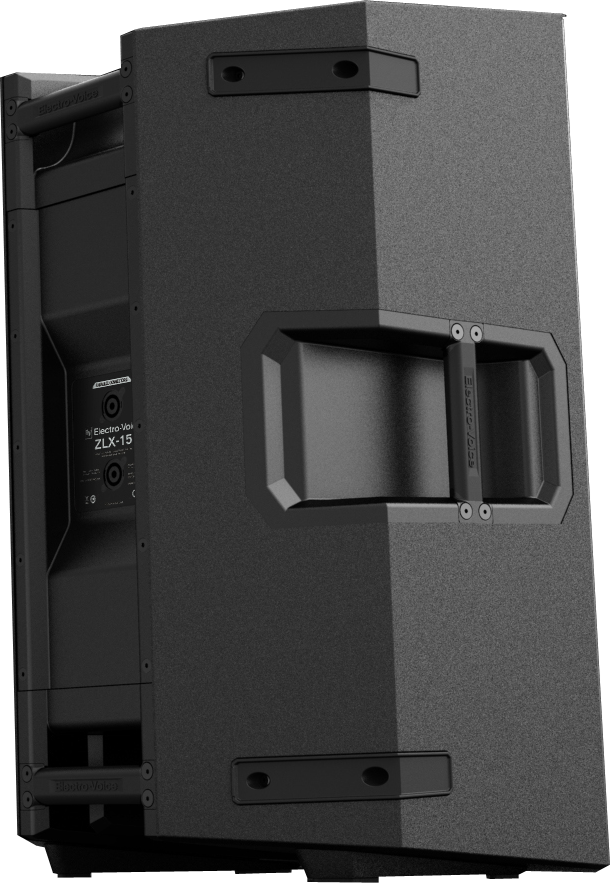

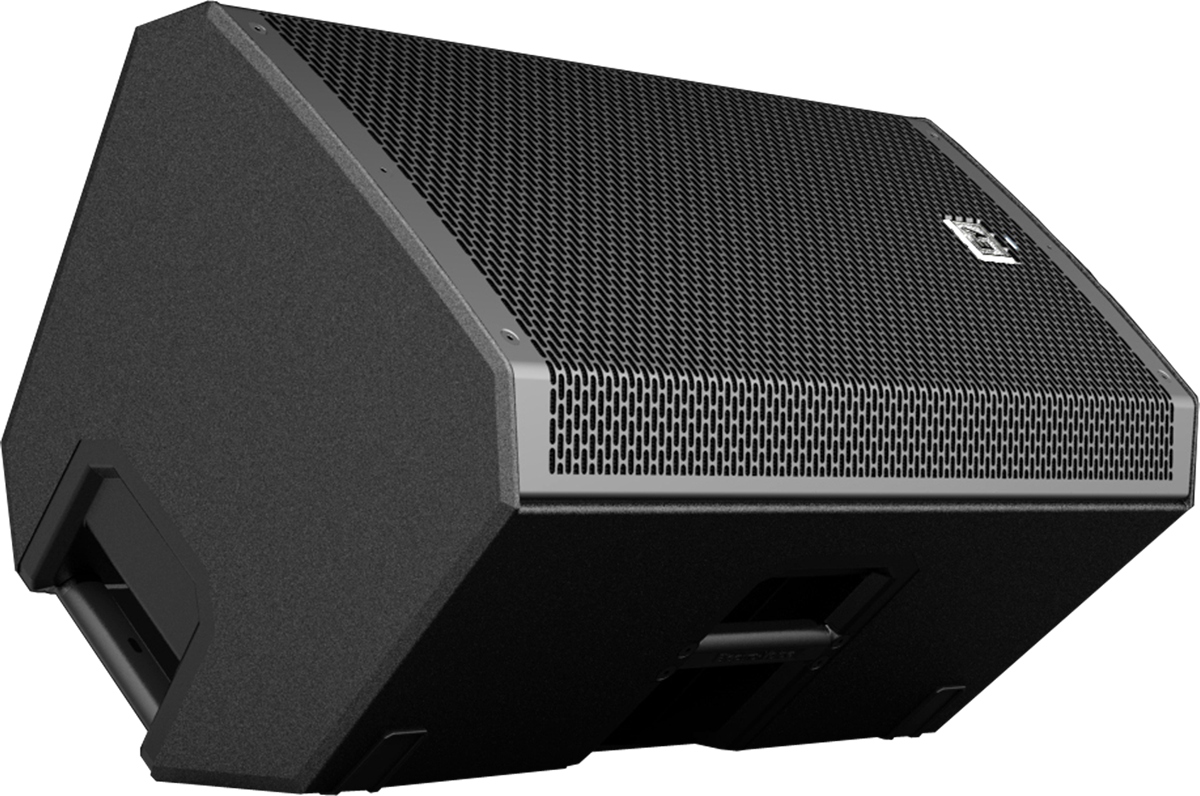

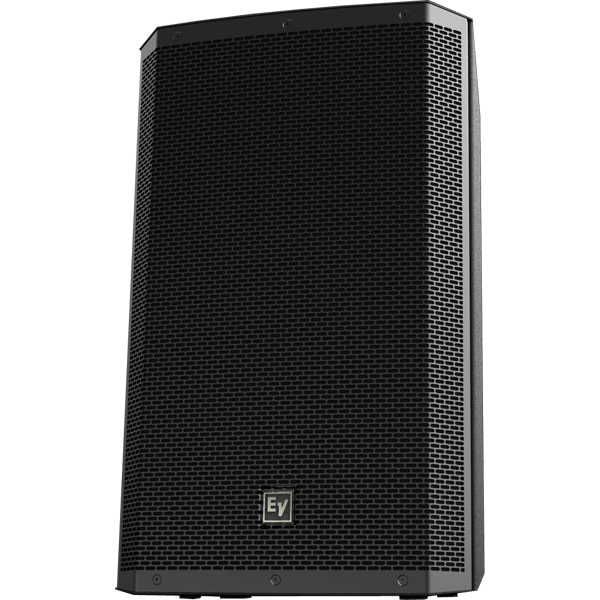

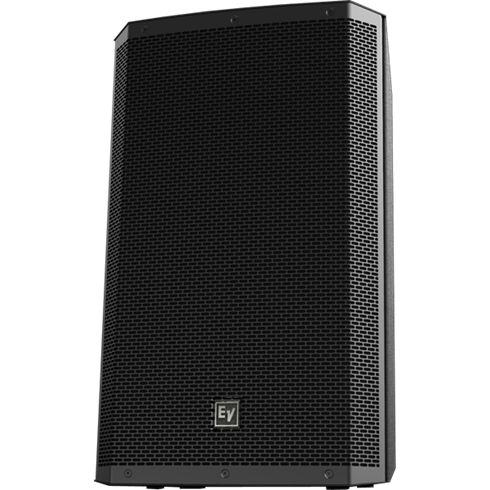

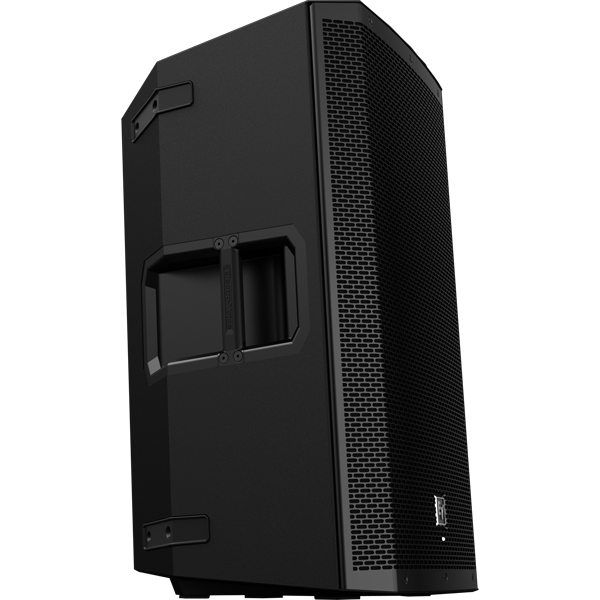

Electro-Voice ZLX 15

• Serija:
  • ZLX
• Frekventni odziv (-3dB):
  • 56 - 18K Hz
• Frekventni opseg (-10dB):
  • 44 – 20K Hz
• Boja:
  • crna
• Osetljivost:
  • 96 dB
• Maksimalni SPL:
  • 126 dB
• Pokrivanje H° x V°:
  • 90° x 60°
• Kontinuirana snaga :
  • 250 W
• Vršna (peak) snaga :
  • 1000 W
• Visokotonac:
  • DH-1K
• Niskotonac (bas):
  • 15"
• Impedansa (oma):
  • 8 oma
• Tip konektora:
  • NL4
• Materijal:
  • Polipropilen (plastika)
• Dimenzije Š x V x D:
  • 423 x 685 x 383 mm
• Težina:
  • 16,6 kg

Freq. Response: 56 Hz – 18 kHz

Freq. Range: 44 Hz – 20 kHz

Axial Sensitivity: 96 dB

Max. Measured SPL: 126 dB

Coverage H° x V°: 90° x 60°

Recommended HP Freq.: 40 Hz

Power Handling: 250 Watts Continuous, 1000 Watts Peak

LF Transducer: EVS-15L, 380 mm (15 in) Woofer

HF Transducer: DH-1K, 39mm (1.5”) Titanium

Cross-over Frequency: 1.7 kHz

Nominal Impedance: 8 Ω

Minimum Impedance: 7 Ω

Connector Type: Dual NL4

Enclosure material: Polypropylene

Grill: 18 Gauge Steel with Black Powder Coat

Dimensions (H x W x D): 685 mm x 423 mm x 383 mm

Weight Net: 16.6 kg
