Electro-Voice CPS 4.10
Electro-Voice CPS 4.10

Kod proizvoda:964

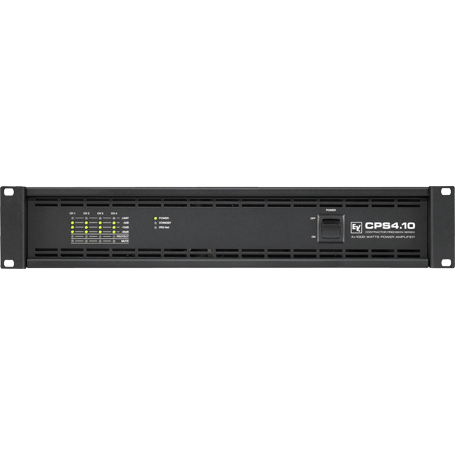

Electro-Voice CPS 4.10

Multikanalni Audio pojačavač snage 4 x 1000W na 4ohm

Namenjen fiksnim instalacijama, mogućnost rada na 100V/70V i kontrole računarom (IRIS Net softver).

363.600,00

Specifikacije proizvoda:

  • Bridge snaga - 4 oma:
    • 2000W
  • Dimenzije Š x V x D:
    • 482,6 x 88,1 x 421,5 mm
  • Težina:
    • 11,1kg

Opis proizvoda:



Weight Net

11.1kg (24.47 lbs)

Depth

421.5mm (16.59")

Width

482.6mm (19")

Height

88.1mm (3.47")

Frequency Response (-3 dB)

15 Hz-30 kHz

Impedance

2/4/8/8 VLD/70 V/100VΩ

Network Control (IRIS-Net)

Optional (RCM-810 card)

Continuous Rated Power (1 kHz, THD 1%) 4Ω

1000Watts

Amplifier Gain

32 dB (Lo-Z), 33 dB (70V), 36dB ((100V))

Continuous Rated Power (1 kHz, THD 1%) 100v

1000Watts

Continuous Rated Power (1 kHz, THD 1%) 70v

1000Watts

Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω

900Watts

Continuous Rated Power (20-20 kHz, THD<0,2%) 100v

900Watts

Electronics Type

Amplifier

Continuous Rated Power (20-20 kHz, THD<0,2%) 70v

900Watts

Continuous Rated Power (1 kHz, THD 1%) 2Ω

1000Watts

Analog Inputs

4, electronically balanced, Phoenix-type

Continuous Rated Power (1 kHz, THD 1%) 8Ω

500Watts

Maximum Input Voltage

+22 (9.76 Vrms)

Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω

450Watts

Maximum Bridged Output 8Ω

2000Watts

Mains Voltage

220 - 240 V, 50 - 60 Hz or 120 V, 50 - 60 Hz, 50 - 60 Hz

Maximum Bridged Output 4Ω

2000Watts

CAN Bus Interface

Optional (RCM-810 card)

Total Harmonic Distortion

0.05%

Cooling

Front-to-Rear, continuously variable fans

Slew Rate

28V/µs

Audio Network

No

Intermodulation Distortion (SMPTE)

0.05%

Variable Load Drive (VLD)

Yes

DIM 30

0.02%

Topology

Class-D

Signal-to-Noise Ratio (A-weighted)

103dB

Input Impedance (Balanced)

20kΩ

Input Sensitivity

0 dBu (.775V)-2ω, +3 dBu (1.1V)-4/8ω, +6 dBu (1.55) 70V/100V
