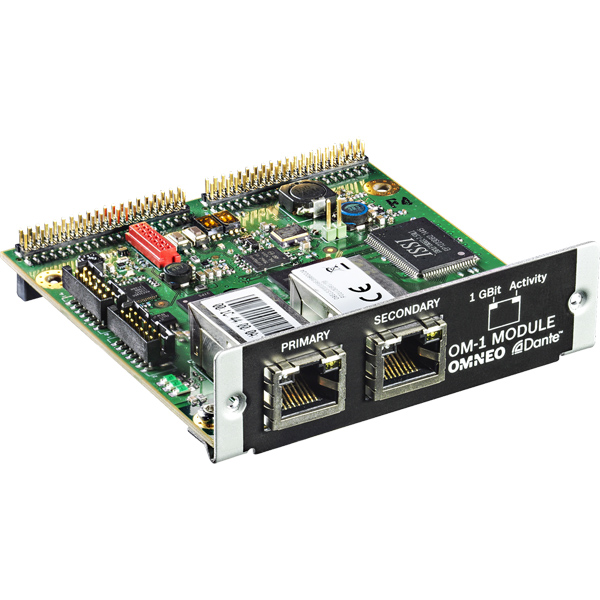

OM-1 je kompaktni modul interfejsa, koji je pripremljen za povezivanje Dynacord P64 i Dinacord PMX-4CR12 audio kontrolera na OMNEO mrežu. Pored toga, OM-1 je u mogućnosti da šalje i prima Dante audio i sa druge Dante opreme. Sa OM-1 je moguć simultani prenos do 32 digitalna ulazna i 32 digitalna izlazna audio kanala sa malim kašnjenjem (obično 1 ms).
Electrical:
Supply voltage/current: +3.3VDC/860mA, +5VDC/60mA
Ethernet connectors (Primary/Secondary): 100/1000Mbit/s, RJ-45,integrated transformer isolation
Sampling rate: 48kHz
Data format: 24Bit
Audio channels: P64 - Up to 32x32 at 48kHz, PROMATRIX 6000 - Up to 16x16 at 48kHz
Audio flows: P64 - Up to 32x32 simultaneous audio streams, PROMATRIX 6000 - Up to 16x16 simultaneous audio streams
Latency across network: P64 - 0.5, 1, or 5ms, PROMATRIX 6000 - 5 ms
Mechanical:
Product dimensions (WidthxHeightxDepth): 89mmx27mmx92mm
Net weight: 75g
Environmental:
Operating temperature: -5°C to +45°C
Storage and transport temperature: -20°C to +70°C
Humidity (non-condensing): 5% to 90%
Altitude: Up to 2000m
