The wide linear zoom function, starting from 7° up to 50°, allows you to use the fixture either as beam effect or wash light. Also the iW-1915Pixel is equipped with high torque motors to ensure fast movements.

Output

• Lux @ 2m: 36600
• Beam Angle: 7° - 50°
• Light Source: Osram Ostar 19x15W RGBW 4-in-1

Electrical

• Input Voltage: 100-240V, 50/60Hz
• Power consumption: 415w max at full output

Control

• On-Board: Battery powered full color display including gravity sensor
• Battery lifetime: max 30 days (full charge)
• Mode: DMX, Auto & Master/Slave
• Control Protocol: DMX512, Artnet
• Control Personality: Advanced 97ch /Basic 21ch
• Wireless DMX: optional available

Optical system

• Dimmer: 0-100%
• Dimmer curves: Linear, Square, I-Square, S curve
• Dimmer speed: Smooth, fast
• Color balance: Separate RGBW adjustment
• Strobe: 0-20Hz
• Zoom: 7° - 50°, motorized

Movement

• Pan: 540°
• Tilt: 270°
• Pan/Tilt resolution: 16 bit
• Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement

Physical

• Color: Black
• Housing: Metal & Flame-retardant plastic

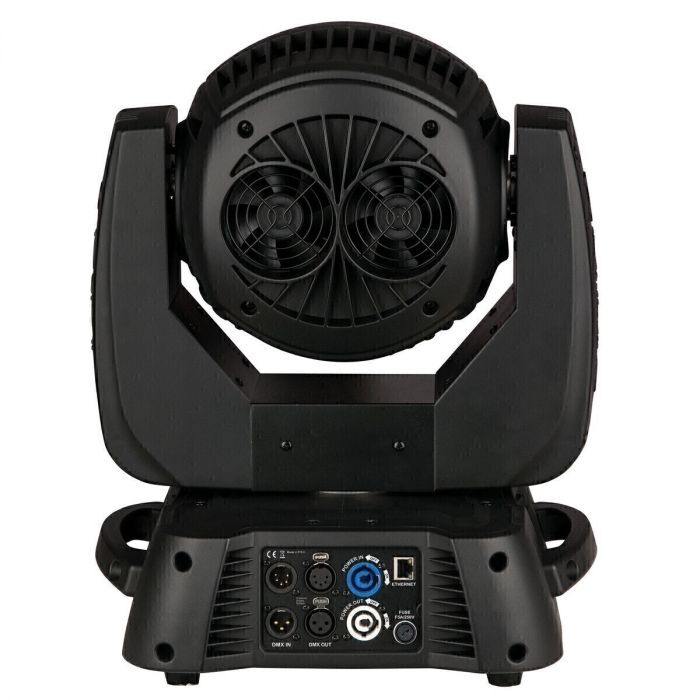

• Data Connection: XLR 3&5p & RJ-45 Data in/out, Powercon power input
• Dimensions (WxDxH): 303 x 366 x 427mm
• Weight: 14Kg
• Certification: CE
• Max. ambient Temp: 40°C
