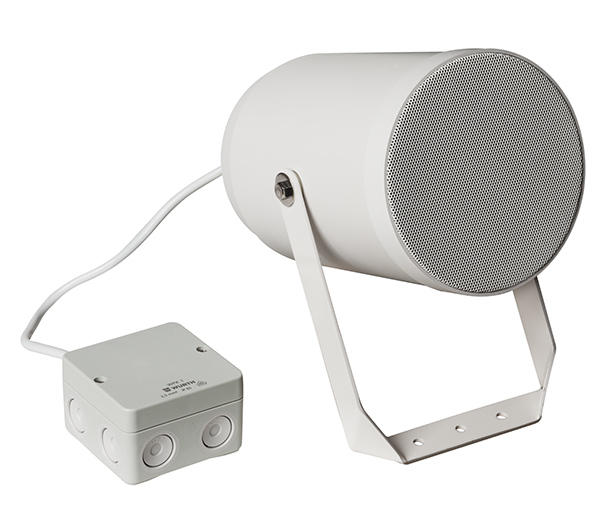

The 10W powered speaker is equipped with a 130mm full-range loudspeaker and a 100V line transformer with 4 power adjustments. A robust ABS plastic housing in RAL9016 and a solid aluminum mounting bracket ensure an enduring installation of this speaker.
A 2 pin-ceramic block and a thermal fuse in a junction box provide additional reliability. The speaker chassis is impregnated against wetness.
The speaker is compliant with the British Standard BS 5839, Part 8.
A mast bracket (MB) is optionally available for 90-200mm mast diameter.
|
Artikel Nr.
|
20173441
|
|
Produkt
|
DA-P 10-130/T-EN54
|
|
Power
|
10/5/2,5/1,25 W
|
|
Frequency Range
|
150 - 20.000 Hz
|
|
Frequency Response
|
120 - 21.000 Hz
|
|
SPL 1W/1m, peak
|
99,5 dB
|
|
SPL , 1W/4m, peak
|
87,5 dB
|
|
SPL Pmax/4m, peak
|
97,5 dB
|
|
SPL, rated noise power / 4m
|
86,0 dB
|
|
Sensitivity EN54-24, 1W/4m
|
75,0 dB
|
|
Dispersion -6dB, 500Hz
|
360°
|
|
Dispersion -6dB, 1KHz
|
252°
|
|
Dispersion -6dB, 2KHz
|
110°
|
|
Dispersion -6dB, 4KHz
|
58°
|
|
Connector
|
2-pin ceramic block
|
|
Maximum cable cross section
|
8mm²
|
|
Max. cable cross section loop
|
2x2mm²
|
|
Temperature range
|
-25 / +70 C°
|
|
Dimensions
|
137x 200mm
|
|
Type A/B
|
B
|
|
IP Rating
|
IP66
|
|
Weight (net)
|
1,44kg
|
|
Colour
|
RAL9016
|
|
Mounting
|
Mounting bracket
|
|
Packing Unit
|
8
|
|
Ref. Nr.
|
021-18
|
|
ID-Code
|
SAA-LS21
|
|
Certificate Number
|
1438-CPR-0388
|
