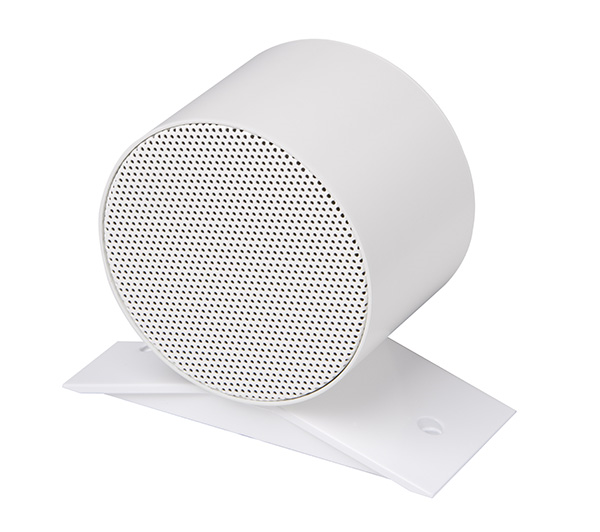

IC Audio DA 10-130/T-EN54

Sound projector
Directional speaker for voice alarm applications, certified according to EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.



Download:

DA_10-130T-EN54_en

Tenderska dokumentacija DA_10-130T-EN54_en

Declaration_of_Performance_Sound_Projectors_CPR

Pozovite za cenu

Specifikacije proizvoda:

Opis proizvoda:

The 10W powered speaker is equipped with a 130mm full-range loudspeaker and a 100V line transformer with 4 power adjustments. A robust powder-coated aluminum housing in RAL 9010, and a vandal-resistant feet ensure a permanent installation of this speaker. For additional reliability, a 2 pin-ceramic block and a thermal fuse is provided and the speaker chassis is impregnated against wetness.

The speaker is also secured with the high protection class IP 65 against the risks of environmental influences.

Perfectly suitable for the installation in corridors and hallways. The speaker is compliant with the British Standard BS 5839, Part 8.

Special paint of the speaker in 4-digit RAL- or NCS- colour available at extra cost.

Artikel Nr.

20122649

Produkt

DA 10-130/T-EN54

Power

10/6/3/1,5 W

Impedance (100V)

1000/1667/3333/6667 ohm

 Frequency Range

200 - 22.200 Hz

 Frequency Response

150 - 23.500 Hz

 SPL 1W/1m, peak

101,0 dB

 SPL , 1W/4m, peak

89,0 dB

 SPL Pmax/4m, peak

99,0 dB

SPL, rated noise power / 4m

90,0 dB

 Sensitivity EN54-24, 1W/4m

81,0 dB

 Sensitivity EN54-24, 1W/1m

90,9 dB

Dispersion -6dB, 500Hz

h/v 360°

Dispersion -6dB, 1KHz

h/v 230°

Dispersion -6dB, 2KHz

h/v 120°

Dispersion -6dB, 4KHz

h/v 50°

Connector

2-pin ceramic block

Maximum cable cross section

8mm²

Max. cable cross section loop

2x2mm²

Temperature range

-25 / +70 C°

Dimensions

166x140x108 mm

Type A/B

B

IP Rating

IP65

Weight (net)

1,84 kg

Colour

RAL 9010

Mounting

screws

Packing Unit

12

Ref. Nr.

003-14

ID-Code

SAA-LS14

Certificate Number

1438-CPR-0234
