Dynacord Xa 2 Pro FIR

Dynacord Xa 2 Pro FIR Sistem

1.944.000,00

Specifikacije proizvoda:

Opis proizvoda:

Dynacord Xa 2 Pro FIR  system

The Dynacord Xa 2 Pro FIR system is ideal for applications such as small city open-air festivals and mobile DJ events covering distances from 20 up to 40 meters. All cabinets have a new heavy-duty structured lacquer surface and a solid-steel front grille matching the latest Dynacord enclosure design. The Xa2-PRO FIR system’s main features – very high sound pressure levels from very compact enclosures, extremely convenient handling, and the ultimate sonic performance at a very reasonable price – will continue to be a benchmark.

The Dynacord Xa 2 Pro FIR system includes

  • 2 x FX12-PRO 12” horn-loaded coaxial two-way loudspeaker cabinet
  • 4 x FX20-PRO 18” planar waveguide bass horn
  • 2 x L3600FD  two-channel FIR DSP system power amplifier

A completely preconfigured, powerful plug and play sound reinforcement system including a system controller.

Ideal for:

- Top-40 Indoor/Outdoor Live Events

- High Power mobile DJ events

- High Quality corporate events

- High-Power speech reinforcement

- Multimedia events

- Theatre applications

- Rental companies

- Fixed installations



High-quality neodymium components combined with new Constant Q horns and patented planar waveguide bass horns deliver maximum sound pressure and superlative audio performance.





FX12-PRO

Description: Passive mid-high speaker, coaxial conical horn





Nominal impedance: 8 Ω





Rated power RMS: 350 W





Program power: 700 W





SPL 1 W/1 m: 106 dB





Maximum SPL (1 meter): 134 dB





Frequency range (-10 dB), measured with Xa 4000: 120–19000 Hz





Coverage angle nominal, 1 kHz, -6 dB (measured with Xa 4000): H 80° x V 40°





Crossover frequency: 1000 Hz





Recommended active crossover frequency to subwoofer: 140 Hz, 18 dB/oct. Butterworth





Voice coil tracking protection: Separate circuits for lo-mid and high





Transducer High frequency: ND 6-8/CDH 8040-14





Transducer Low-mid frequency: ND 12A





Audio sockets Model: 2 x NEUTRIK speakON NL4MPR





Audio sockets Contacts “normal”: 1+/1-





Audio sockets Contacts "system": 2+/2-





Enclosure material: Birch plywood, 15 mm





Enclosure finish: Heavy-duty structured lacquer





Color: Black (RAL 9005, jet black)





Grille: Powder coated steel with acoustic foam





Handles: 2





Webbing strap point:2





Castors:4





Product dimensions (WxHxD): 600 x 610 x 814 mm





Net weight: 49.5 kg





Shipping weight: 54.6 kg













FX20-PRO

Description: Passive subwoofer, planar waveguide bass horn





Nominal impedance: 8 Ω





Rated power RMS: 600 W





Program power: 1200 W





SPL 1 W/1 m: 101 dB





Maximum SPL (1 meter): 132 dB





Frequency range (-10 dB), measured with Xa 4000: 30–150 Hz





Recommended active crossover frequency: 140 Hz, 18 dB/oct. Butterworth





Voice coil tracking protection: Yes





Transducer: EVX 180B





Audio Socket Models: 2 x NEUTRIK speakON NL4MPR





Audio Socket Contacts: 1+/1-





Enclosure material: Birch plywood, 15 mm





Enclosure finish: Heavy-duty structured lacquer





Color: Black (RAL 9005, jet black)





Grille: Powder coated steel with acoustic foam





Handles: 6





Castors: 4





Product dimensions (WxHxD): 610 x 905 x 814 mm





Net weight: 54.3 kg





Shipping weight: 60.5 kg

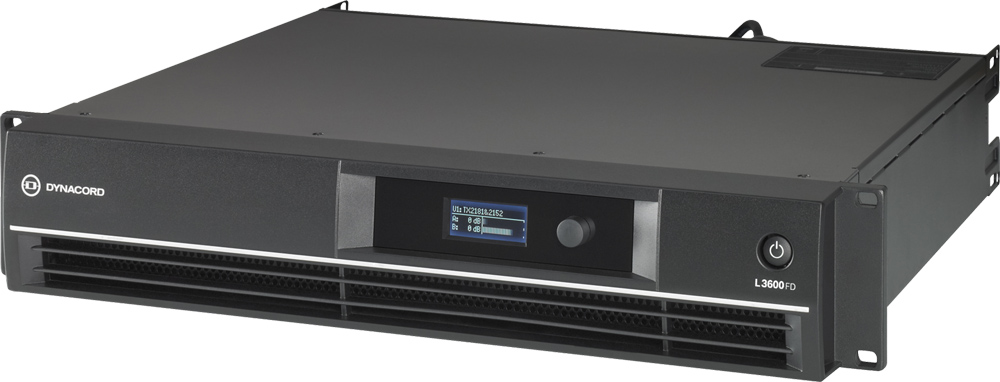

L3600FD

Depth 462.4 mm
DIM 30 <0.05% %
Frequency Response, ref 1kHz 10 Hz - 21 kHz (±1dB)
Height 88 mm
IMD-SMPTE, 60 Hz, 7 kHz <0.1%
Input Impedance 20 kΩ
Load Impedance 2 Ω/4 Ω/8 Ω
Maximum Input Level +21 dBu
Maximum Output Power, Bridged 4Ω=6000W; 8Ω=3400W
Maximum Output Power, Dual Channel 2Ω=3000W; 4Ω=1700W; 8Ω=900W
Maximum Output Power, SIngle Channel 2Ω=3200W; 4Ω=1800W; 8Ω=950W
Maximum Output Power, Single Channel @ 2Ω 3200 Watts
Maximum RMS Voltage Swing, THD=1% 90.6V
Output Noise , A-weighted < -68 dBu
Signal Processing FIR Filters, Audio Limiters, Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance
Signal-to-Noise Ratio (A-weighted) > 109 dB dB
Total Harmonic Distortion <0.05% %
Voltage Gain, ref. 1 kHz 32 dB
Weight Net 16.2 kg
Width 483 mm
